301.474.170

360° Rotating Fork Clamp

Residual Capacity Calculation

301.474.170

360° Rotating Fork Clamp

Residual Capacity Calculation

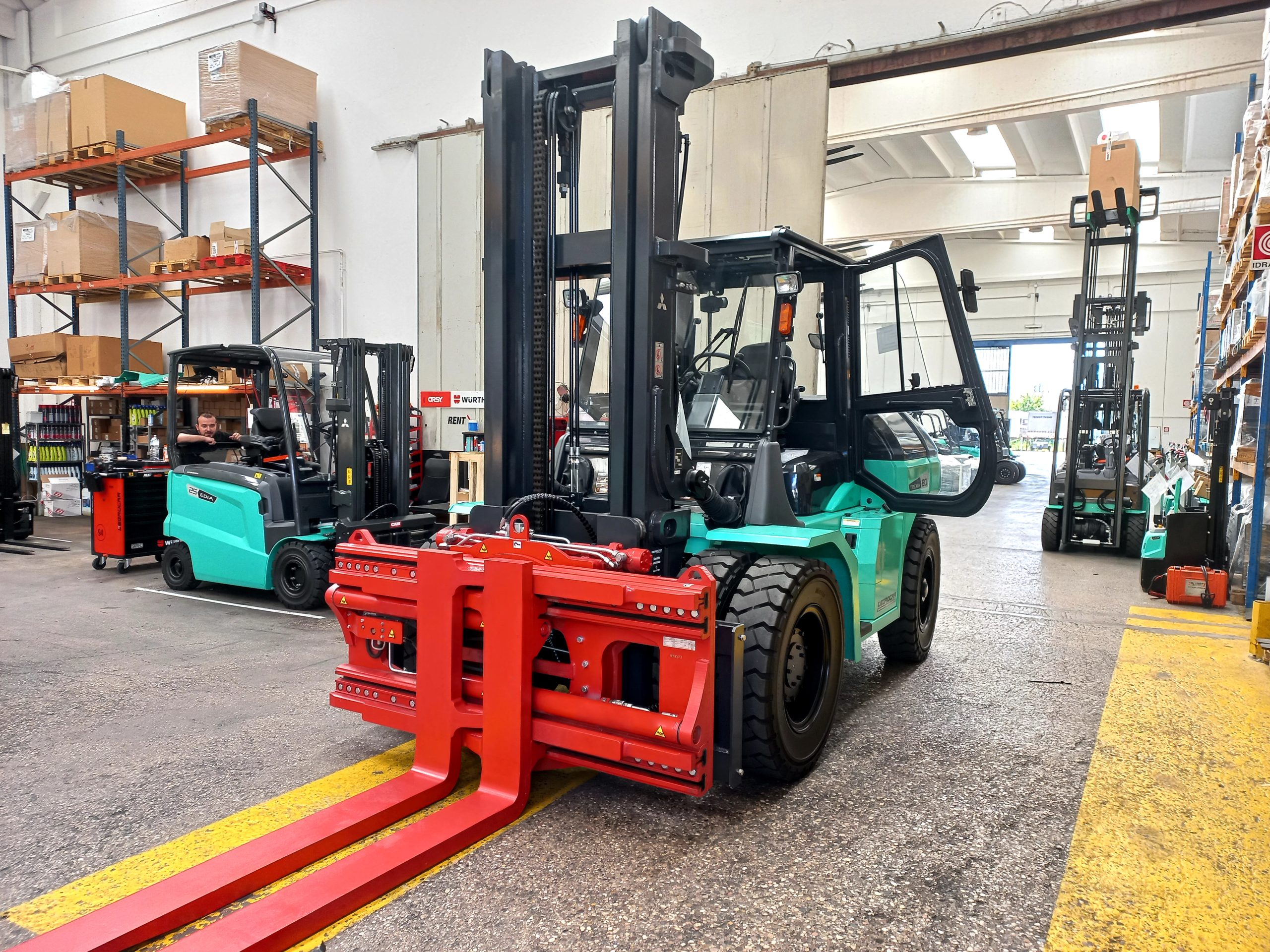

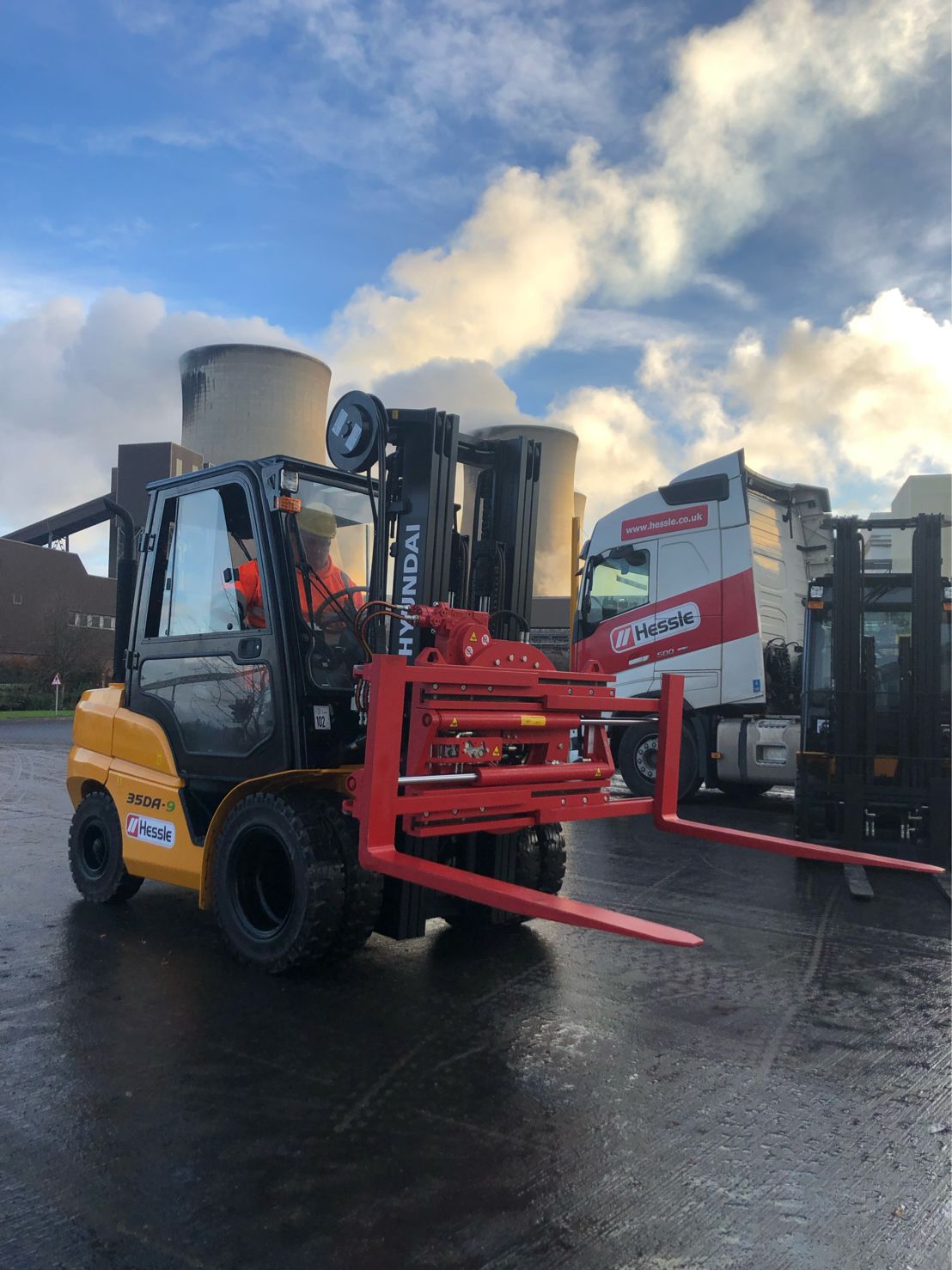

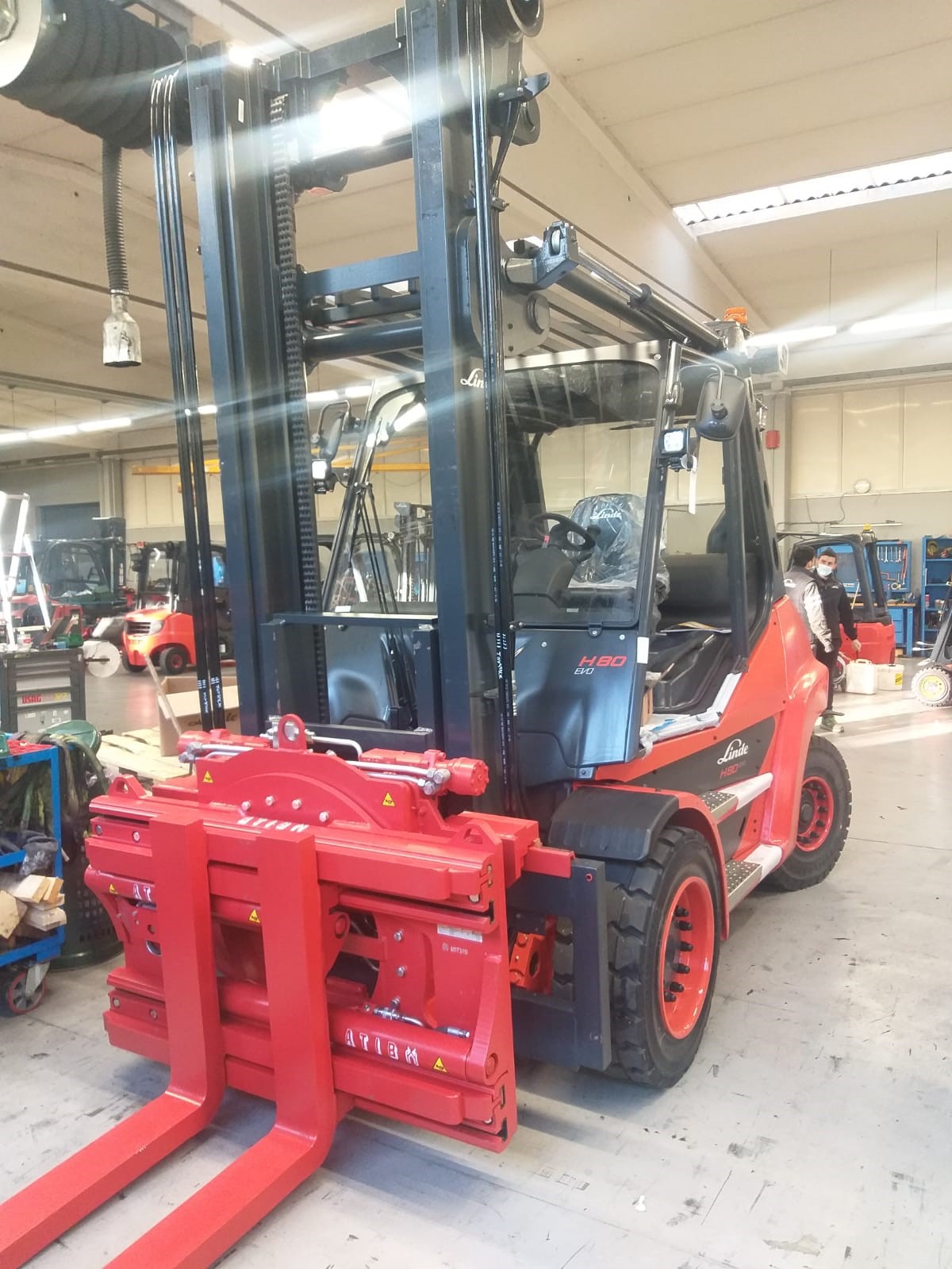

Rotating Clamp with welded forks to move the load both on pallets and by clamping and rotating it. The clamping force allows a safe movement of the load. A pressure relief valve, a non-return valve and a regenerative valve are supplied as standard on each model. Min. and Max. openings can be adapted to different needs, as the forks section and length. Side shifting valve and semi-integral sideshift available on request.

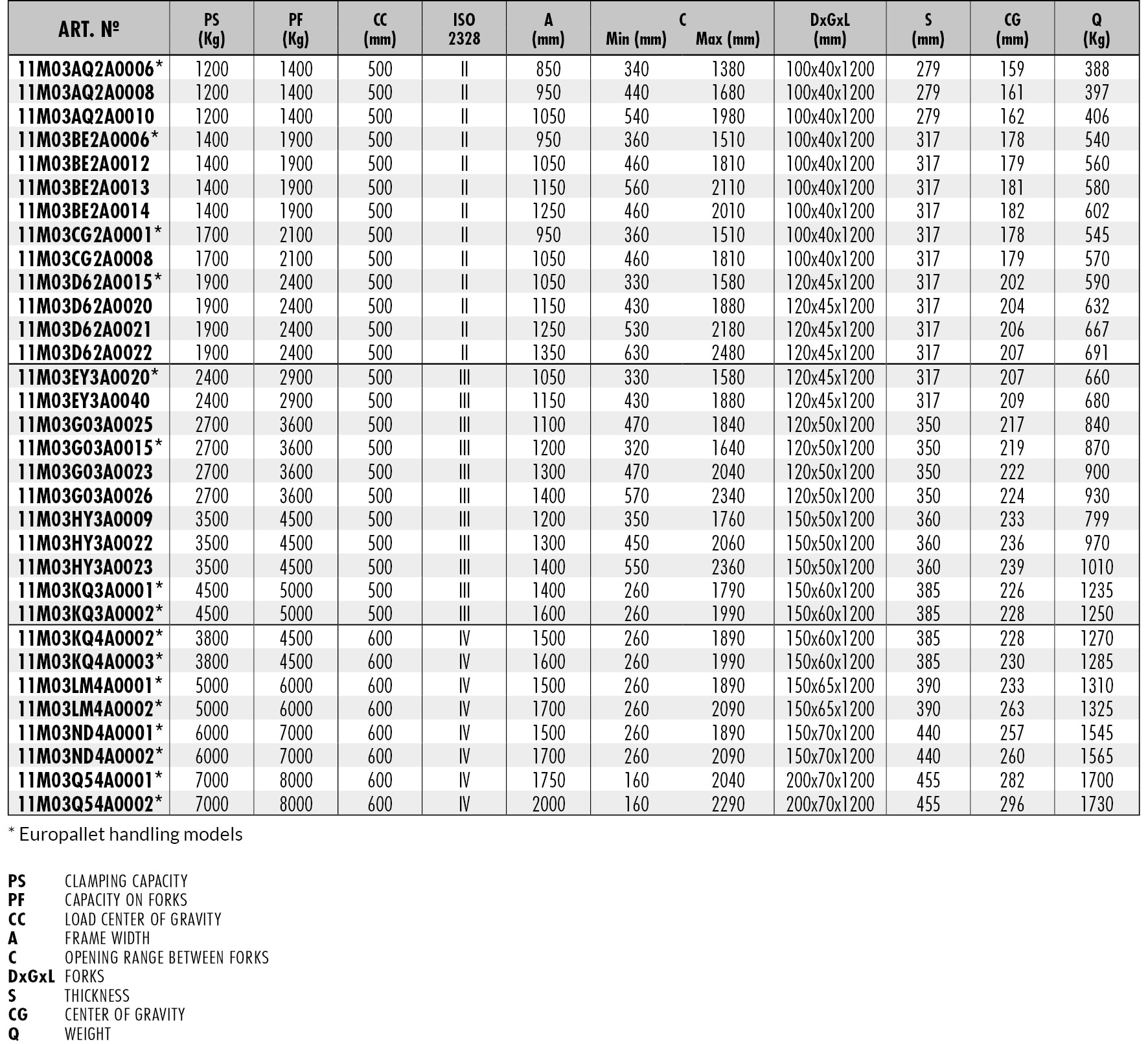

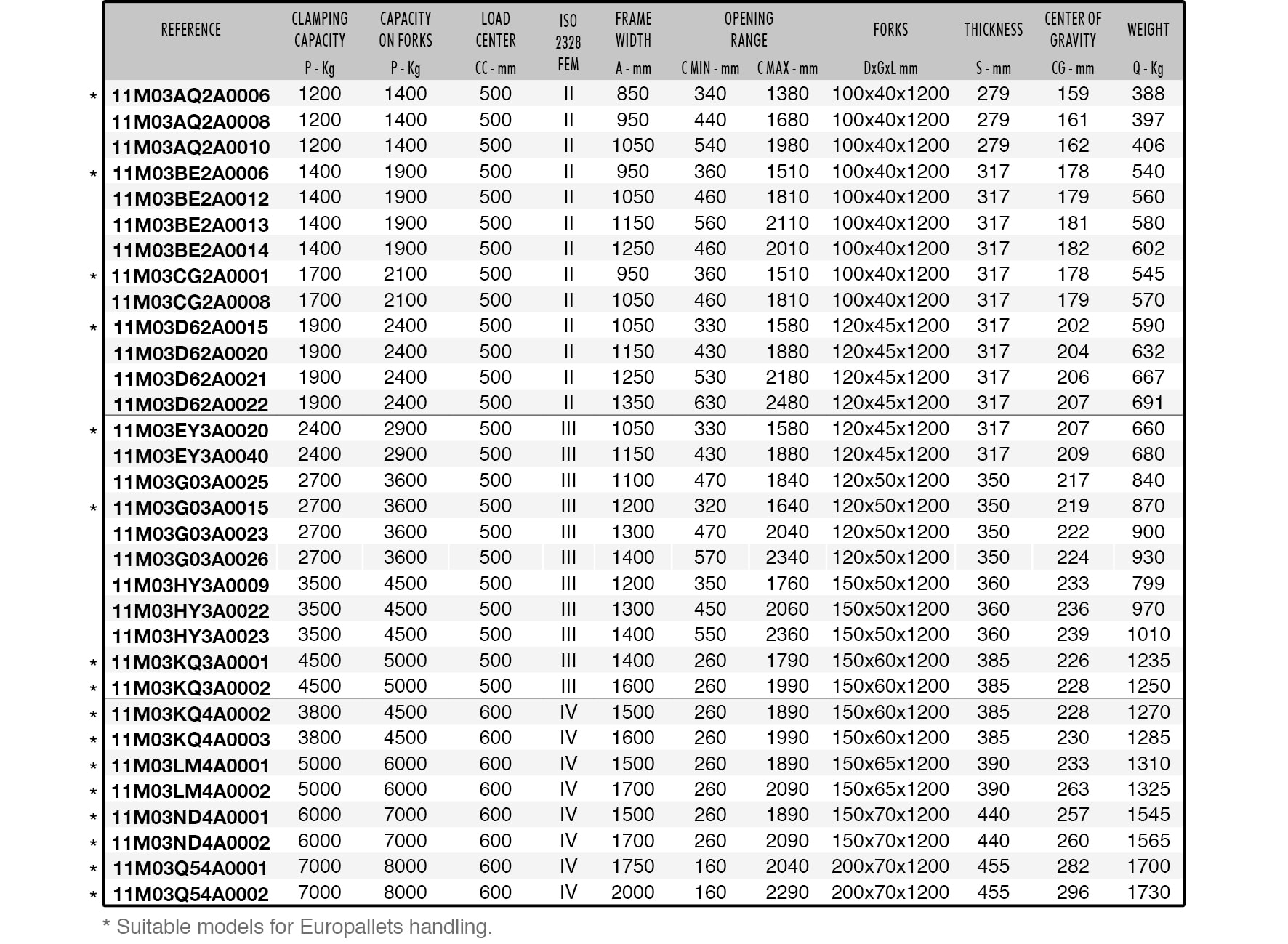

Data Sheet
