474.141

Block Clamp
with Compensating Arms

Residual Capacity Calculation

474.141

Block Clamp
with Compensating Arms

Residual Capacity Calculation

Clamp with compensating arms, suggested to customers who need to handle concrete blocks and building materials. The clamping force, which can be set through hydraulic valve, allows a safe movement of the load. A pressure relief valve, a non-return valve and a regenerative valve are supplied as standard on each model. Min. and Max. openings can be adapted to different needs, as arms dimension and length. Side shifting valve and semi-integral sideshift available on request.

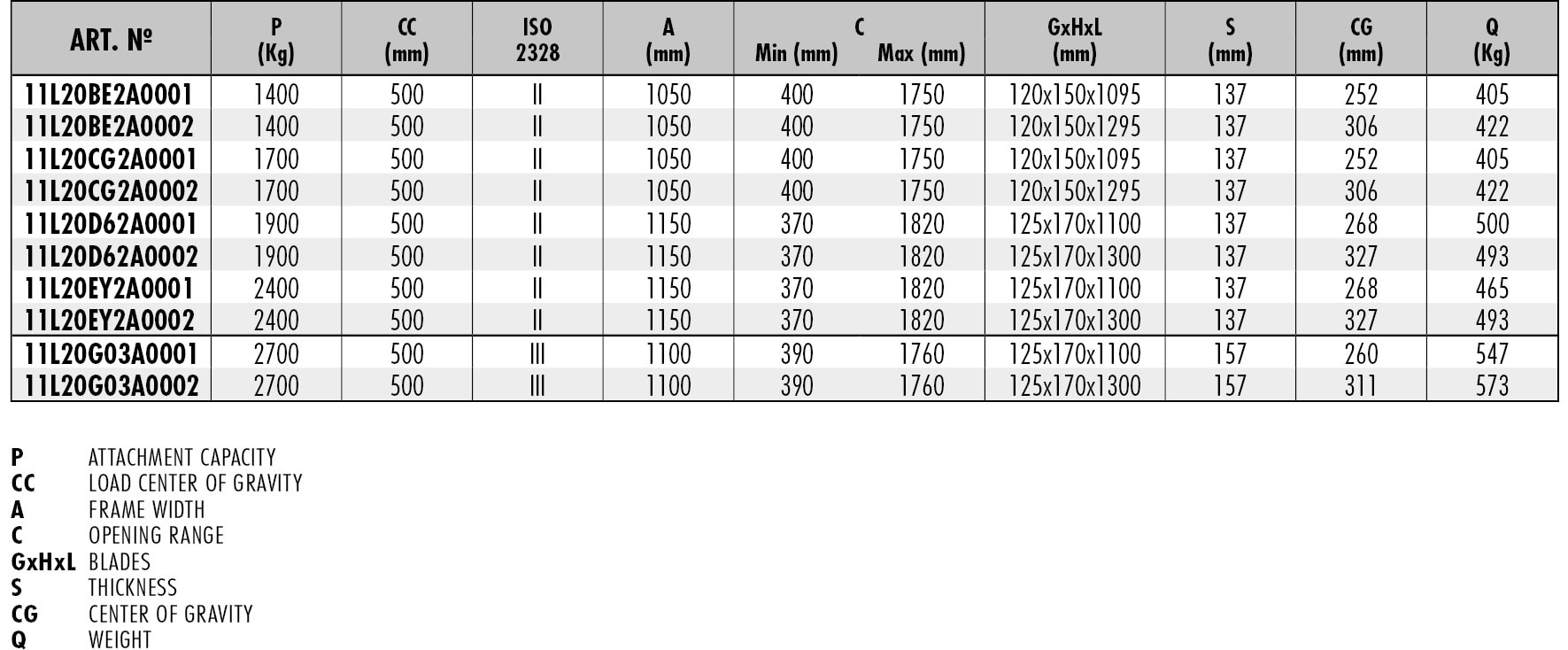

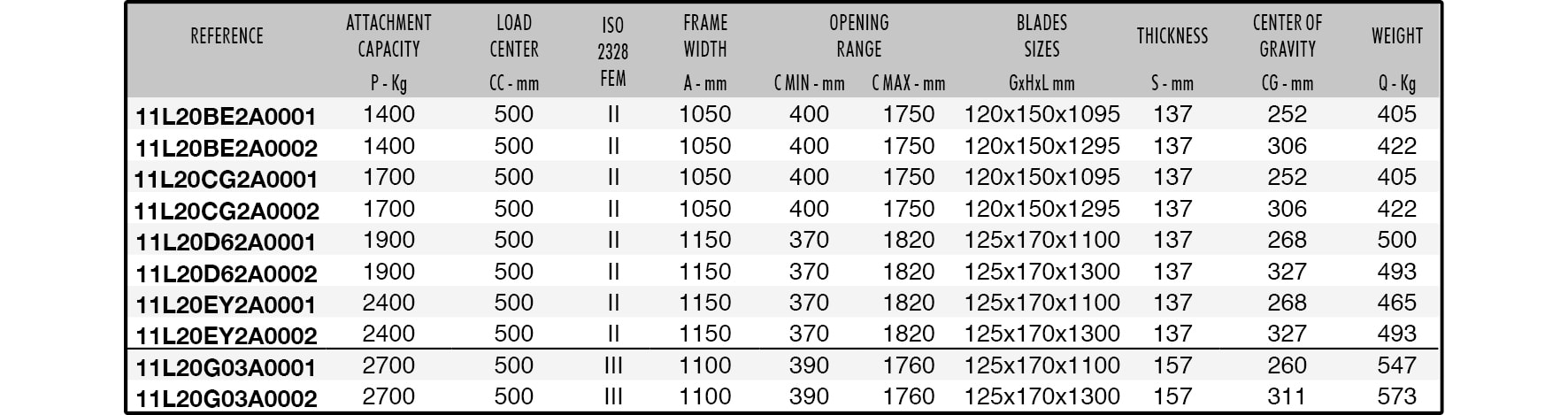

Data Sheet
