342 SM

360° Rotating Roll Clamp with 90° forward tipping and adjustable arms

Residual Capacity Calculation

342 SM

360° Rotating Roll Clamp with 90° forward tipping and adjustable arms

Residual Capacity Calculation

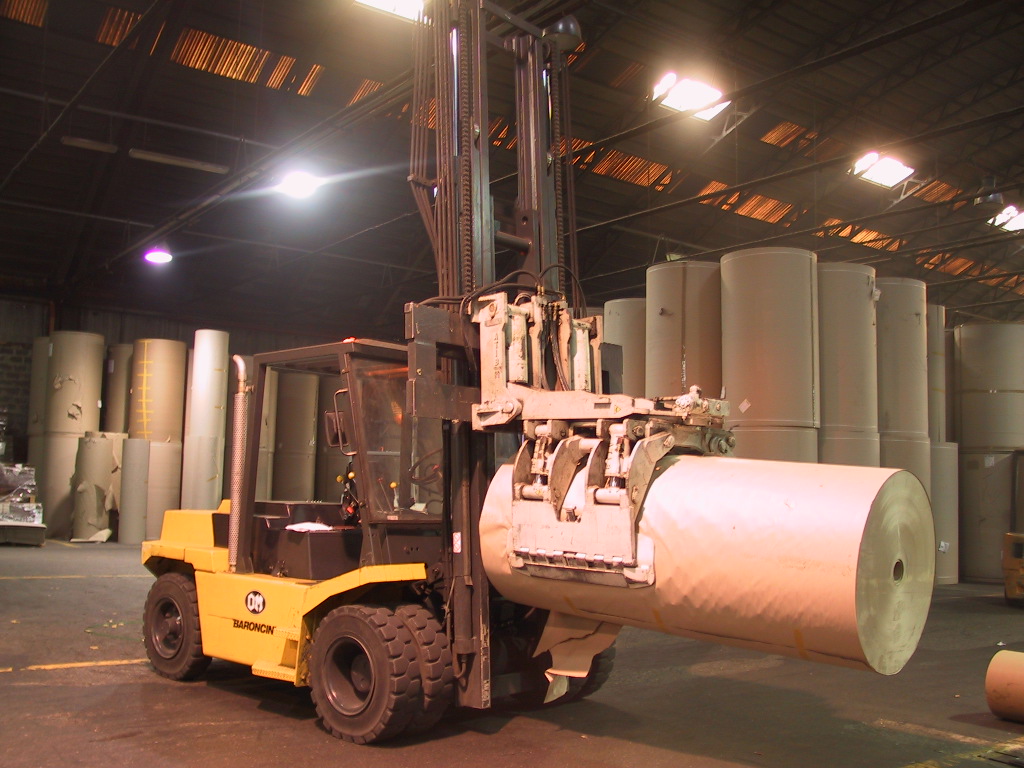

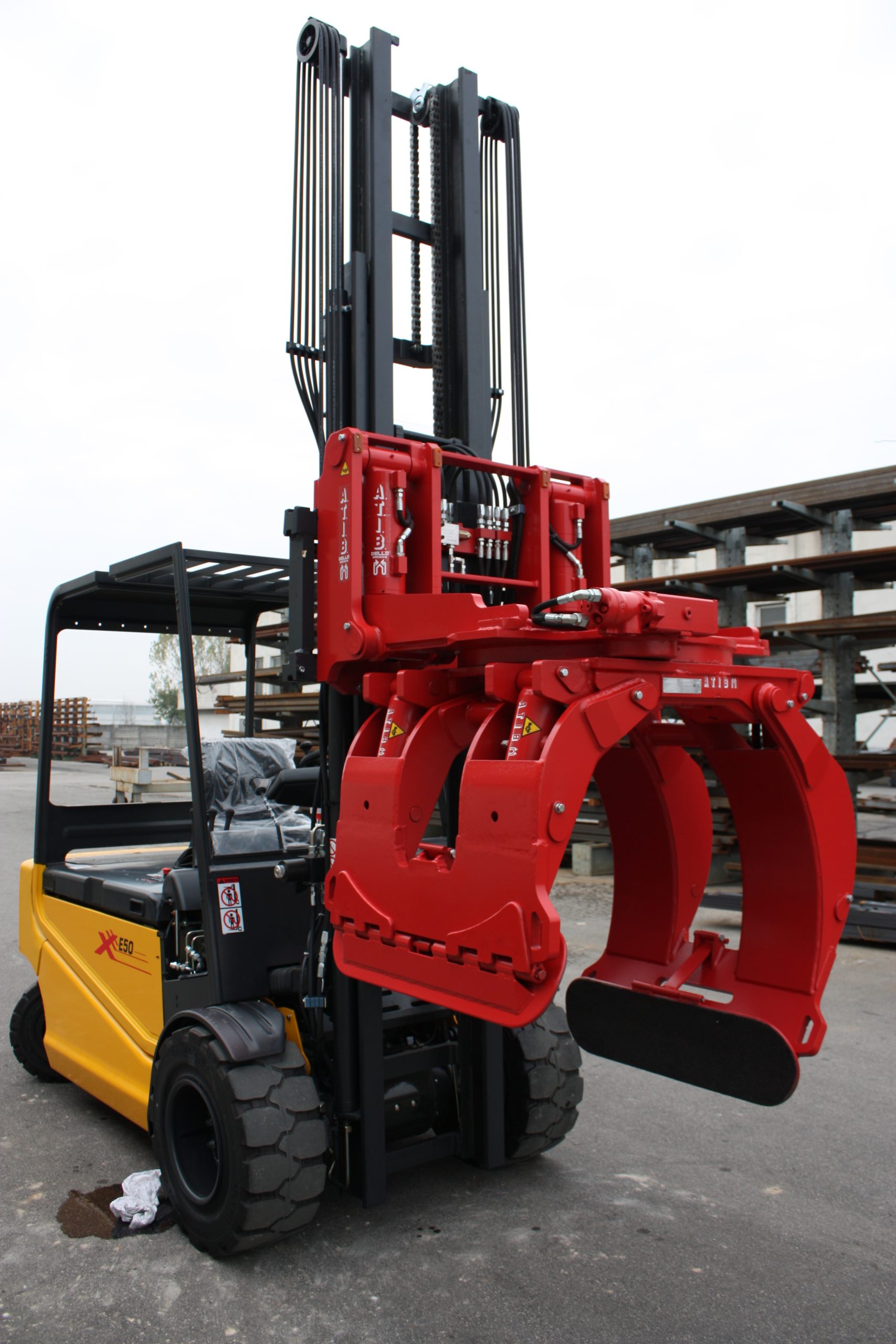

Roll Clamp with a short adjustable arm, which allows a wider opening, and a long complete one. Its 360° rotation can be mechanically blocked at 180° on request, and it allows to grab and rotate one or more overlapping rolls with the same diameter. 90° frontal tipping allows the gripping of the rolls, placed perpendicular to the axis of the forklift. A wide choice of openings, capacities and contact pads allow to find the perfect attachment for every needs.

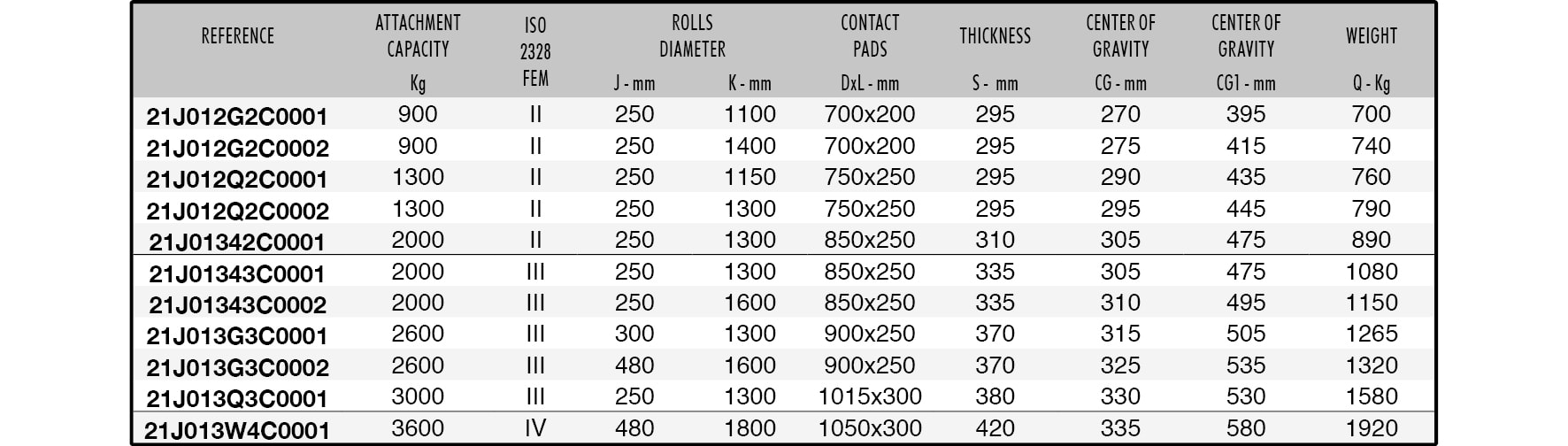

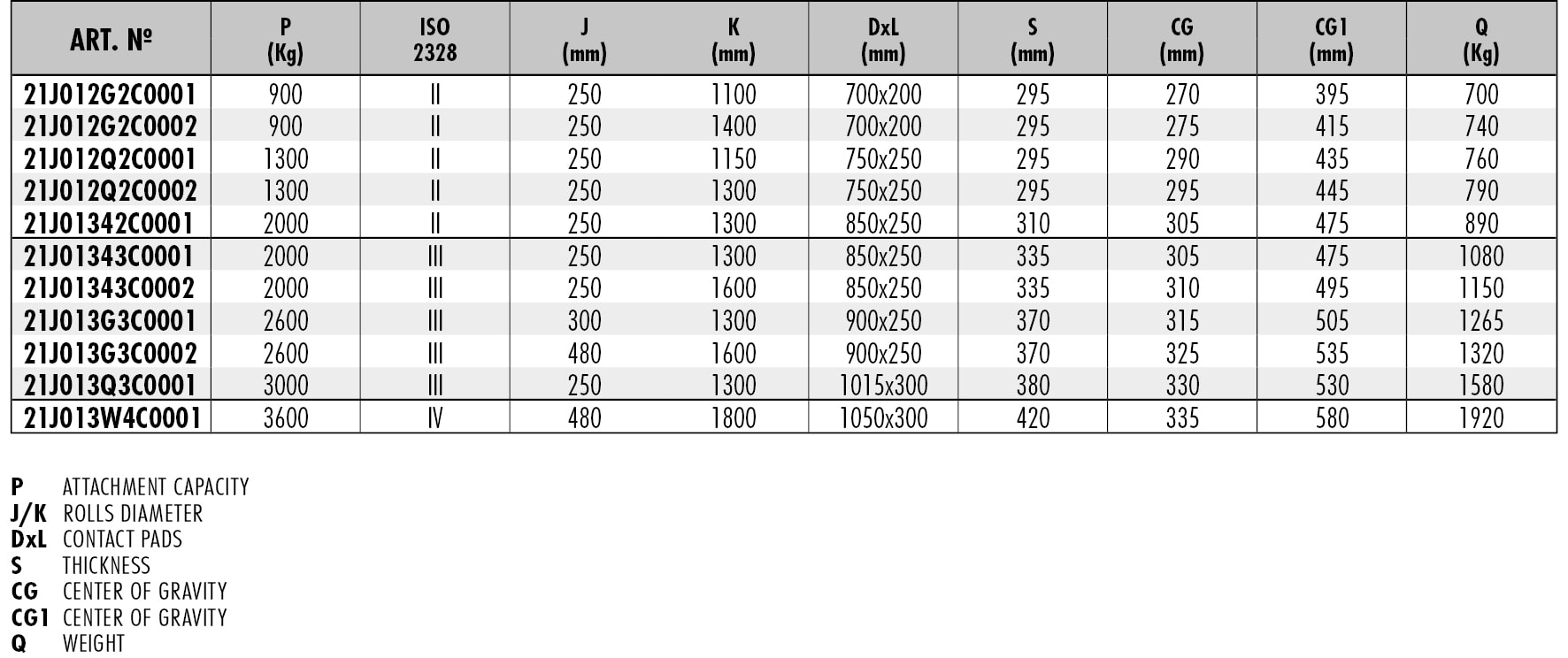

Data Sheet
