301.474.190

360° Rotating Drum Clamp
for two or four Drum

Residual Capacity Calculation

301.474.190

360° Rotating Drum Clamp
for two or four Drum

Residual Capacity Calculation

Rotating Clamp specifically suggested to customers who need to move and rotate two or four barrels together. The clamping force, which can be set through a hydraulic valve, allows a safe movement of the load. A pressure relief valve, a non-return valve and a regenerative valve are supplied as standard on each model. Min. and Max. openings can be adapted to different needs, as the arms dimension and length. Side shifting valve and semi-integral sideshift available on request.

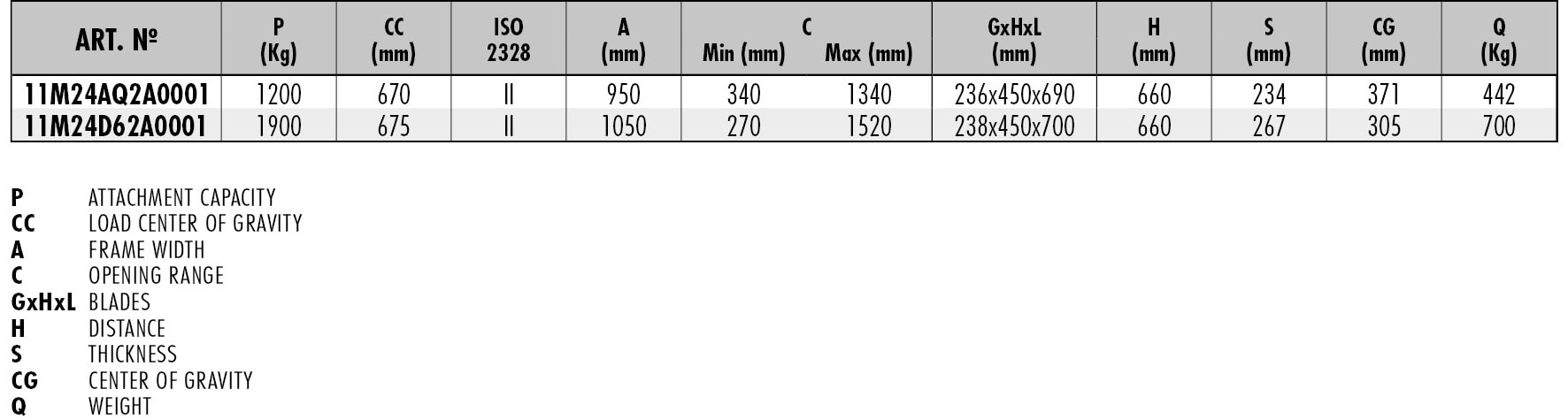

Data Sheet
