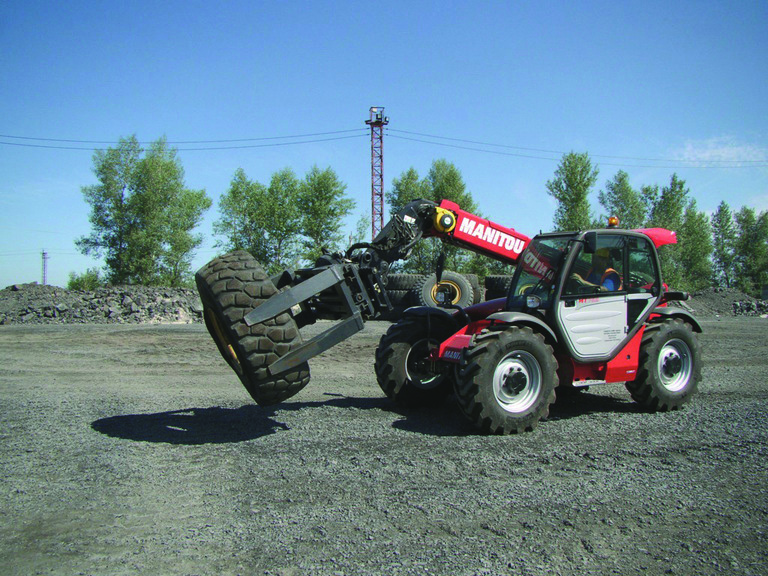

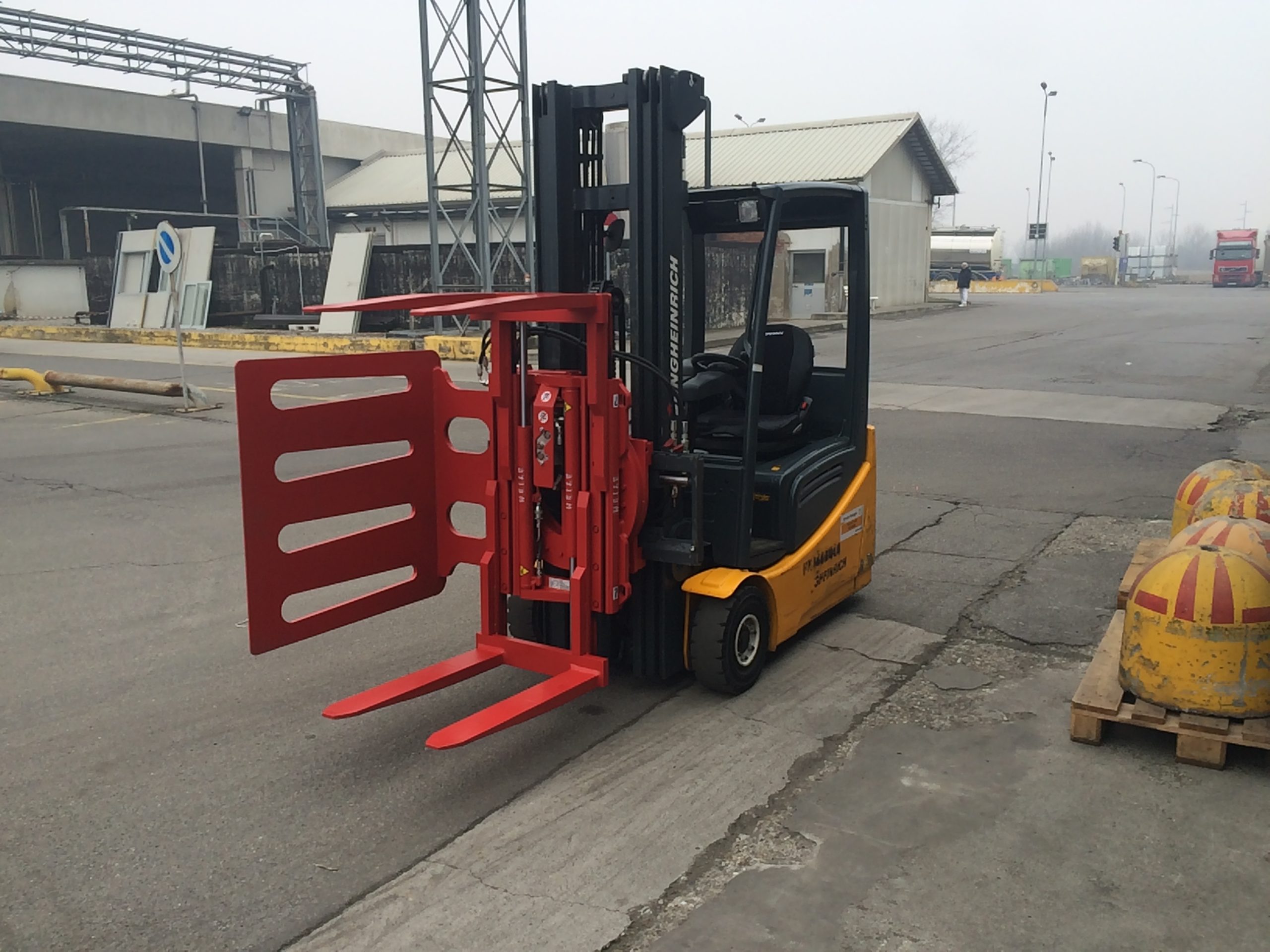

Rotating Clamp with 4 welded forks to move the load both on pallets and by clamping and rotating it. Thanks to the pair of forks welded on each profile, it can also overturnes loads for replacing pallets. The clamping force, which can be set through a hydraulic valve, allows a safe movement of the load. A pressure relief valve, a non-return valve and a regenerative valve are supplied as standard on each model. Min. and Max. openings can be adapted to different needs, as the forks section and length. Side shifting valve and semi-integral sideshift available on request.

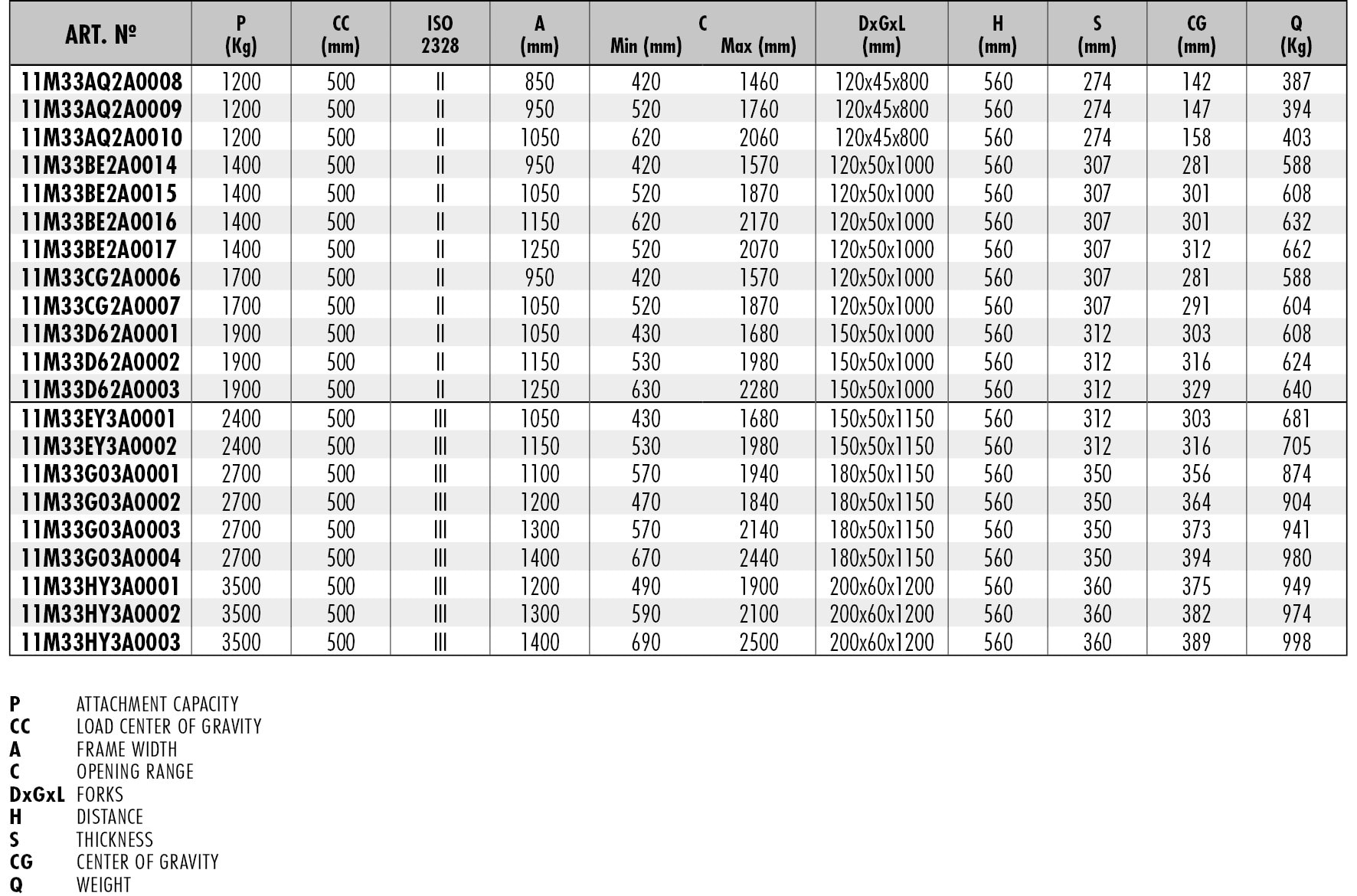

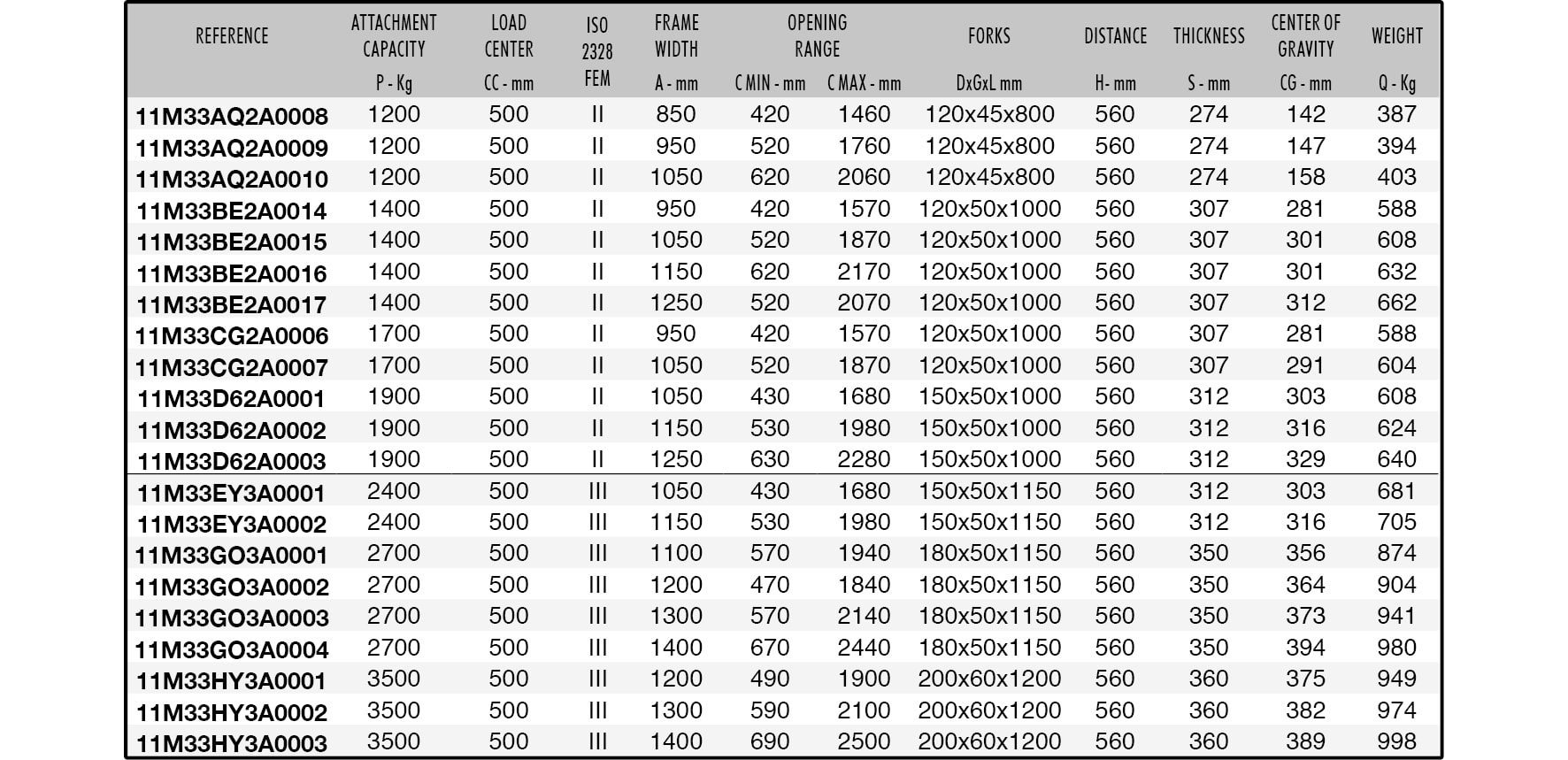

Data Sheet
