301.474.131

360° Rotating Bale Clamp
with Thin Blades

Residual Capacity Calculation

301.474.131

360° Rotating Bale Clamp
with Thin Blades

Residual Capacity Calculation

Rotating Clamp with full arms penetration thin welded forks, suggested to customers who need to move and rotate bales of any material: paper, carton, plastic, junk or others. The clamping force, which can be set through hydraulic valve, allows a safe movement of the load. A pressure relief valve, a non-return valve and a regenerative valve are supplied as standard on each model. Min. and Max. openings can be adapted to different needs, as the forks section and length. Side shifting valve and semi-integral sideshift available on request.

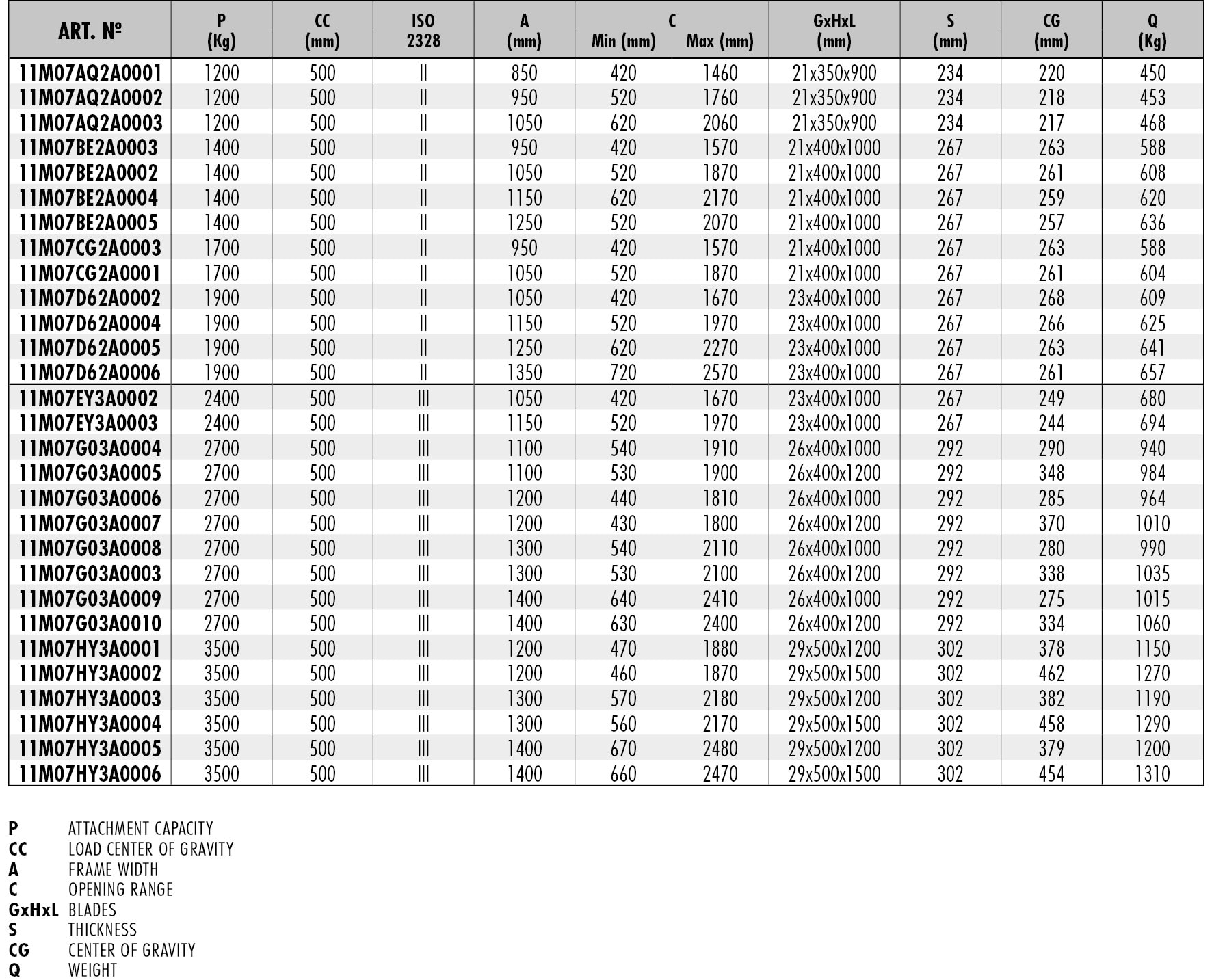

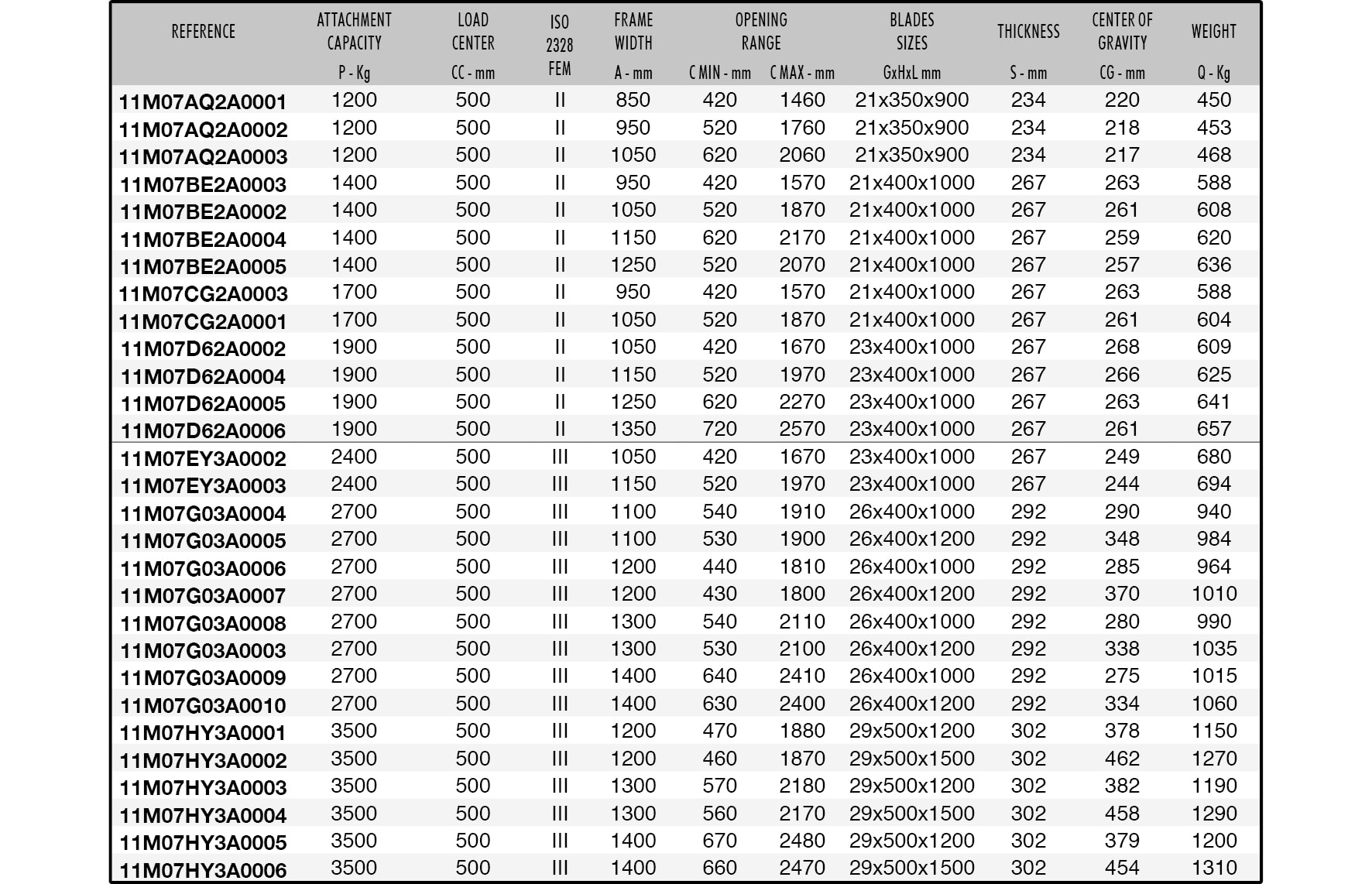

Data Sheet
